Technical Specifications
| General Specifications | ||||||
| Frequency Range |
136-174MHz/400-430MHz/440-470MHz | Number of channels | 16 | |||
| Operating Voltage | 7.4V | Frequency stability | ±2.5PPM | |||
| Operating temperature range | -20℃~+60℃ | Dimensions (H x W x D)(Without antenna) | 100 x 55.5 x 31mm | |||
| Weight (including antenna and battery) | 200g | |||||
| Transmitter | ||||||
| Output Power | LO: 1.0W, HI: 5.0W | |||||
| Modulation | F3E | |||||
| Lead power | >65dB | |||||
| Signal to noise ratio | 40dB | |||||
| Audio distortion | ≤5% | |||||
| Modulation limit | ±5KHz | |||||
| Spurious radiation | <-60dB | |||||
| Modulation characteristics | ±3dB | |||||
| Receiver | ||||||
| Sensitivity | <0.20μV | |||||
| Adjacent channel selectivity | 65dB | |||||
| Intermodulation | ≥60dB | |||||
| Spurious response suppression | 65dB | |||||
| Audio output power | 500mW | |||||
| Audio distortion | ≤5% | |||||

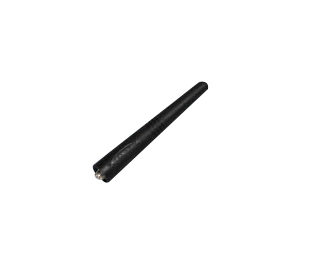

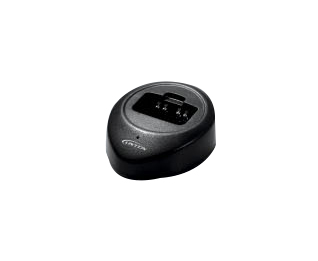

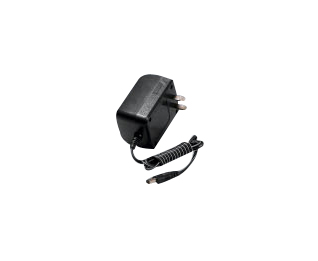

Standard Accessories
