General Specifications |
Frequency Range
|
|
VHF:136-174MHz UHF: 400-470MHz |
| Number of channels |
|
32 |
Channel spacing |
|
25/12.5KHz |
| Operating Voltage |
|
7.4V |

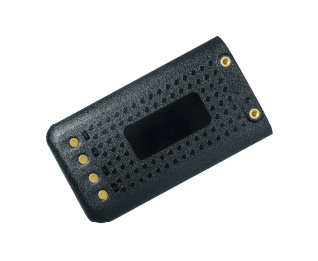

Standard battery |
|
2000mah (lithium ion) |
| Battery average working hours (5-5-90 working cycles) |
|
Analog / Digital: 13/17 hours |
Frequency stability |
|
±1.5 PPM |
| Operating temperature range |
|
-20℃~+55℃ |

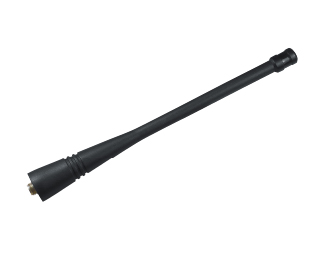

Antenna impedance |
|
50Ω |
| Dimensions (H x W x D)(Without antenna) |
|
119 x 55 x 34mm |
Weight (including antenna and battery) |
|
280g |
|
Transmitter |
Output Power |
|
VHF: 5.0W/1.0W UHF: 4.0W/1.0W |
|
Modulation (analog) |
|
11KΦF3E@12.5KHz 16KΦF3E@25KHz |
|
Modulation (digital) |
|
12.5KHz Data and voice 7K60FXW. Data only 7K60FXD |
|
Clutter and harmonics |
|
-36dBm<1GHz -30dBm>1GHz |
|
Signal to noise ratio |
|
40/45dB |
|
Audio distortion |
|
≤3% |
|
Modulation limit |
|
±2.5@12.5KHz;±5.0@25KHz |
|
Audio response(300 ~ 3000HZ) |
|
+1to-3dB |
|
Digital vocoder type |
|
AMBE++ |
|
Digital protocol |
|
ETSI-TS102361-1.-2.-3 |
|
Receiver |
Sensitivity (simulation) |
|
≤0.30/0.20µV |
|
Sensitivity (number) |
|
≤0.22µV/BER5% |
|
Adjacent channel selectivity |
|
60/70dB |
|
Intermodulation |
|
65dB |
|
Spurious response suppression |
|
70dB |
|
Signal to noise ratio |
|
40/45dB |
|
Audio output power |
|
1.0W |
|
Audio distortion |
|
≤3% |
|
Audio response |
|
+1~-3dB |
|
Conduction emission miscellaneous |
|
<-57dBm |
|
The above specifications are tested in accordance with TIA/EIA-603 standard. The receive part specification applies only to 136-174MHz,
400-470MHz. As the technology continues to develop, the above specifications are subject to change without notice.
